Line - Connection — Wiresk Documentation

Line software is a communication and collaboration platform widely used for messaging, voice calls, and group chats. It also offers additional tools like social networking services, mobile payments, and business communication features through its various integrations and APIs.

Integrating Line with Wiresk allows businesses to centralize communications across multiple channels. This connection enables teams to manage customer interactions, messages, and updates within one platform, eliminating the need to switch between systems.

Connect Line to Wiresk Copy Link

Get a Channel Access Token Copy Link

1. Create a LINE Official Account

Go to LINE Official Account Manager
Click Create a LINE Official Account
Fill in your business or project info (name, category, description, etc.).
Once created, you’ll manage it from the Official Account Manager.

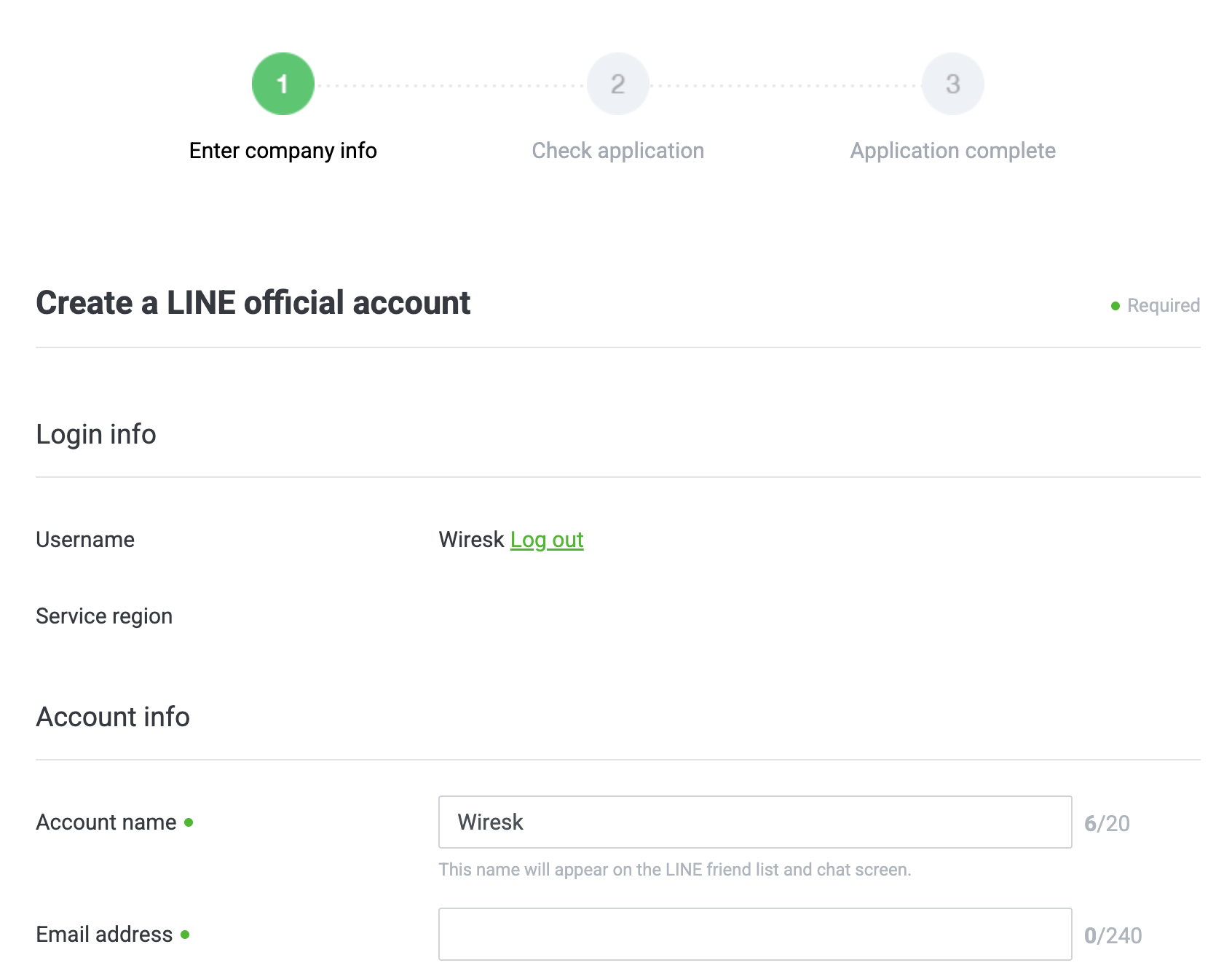

LINE Official Account creation step 1: Enter company info. Form fields include username Wiresk, service region, account name Wiresk, and email address. Progress bar shows step 1 highlighted.

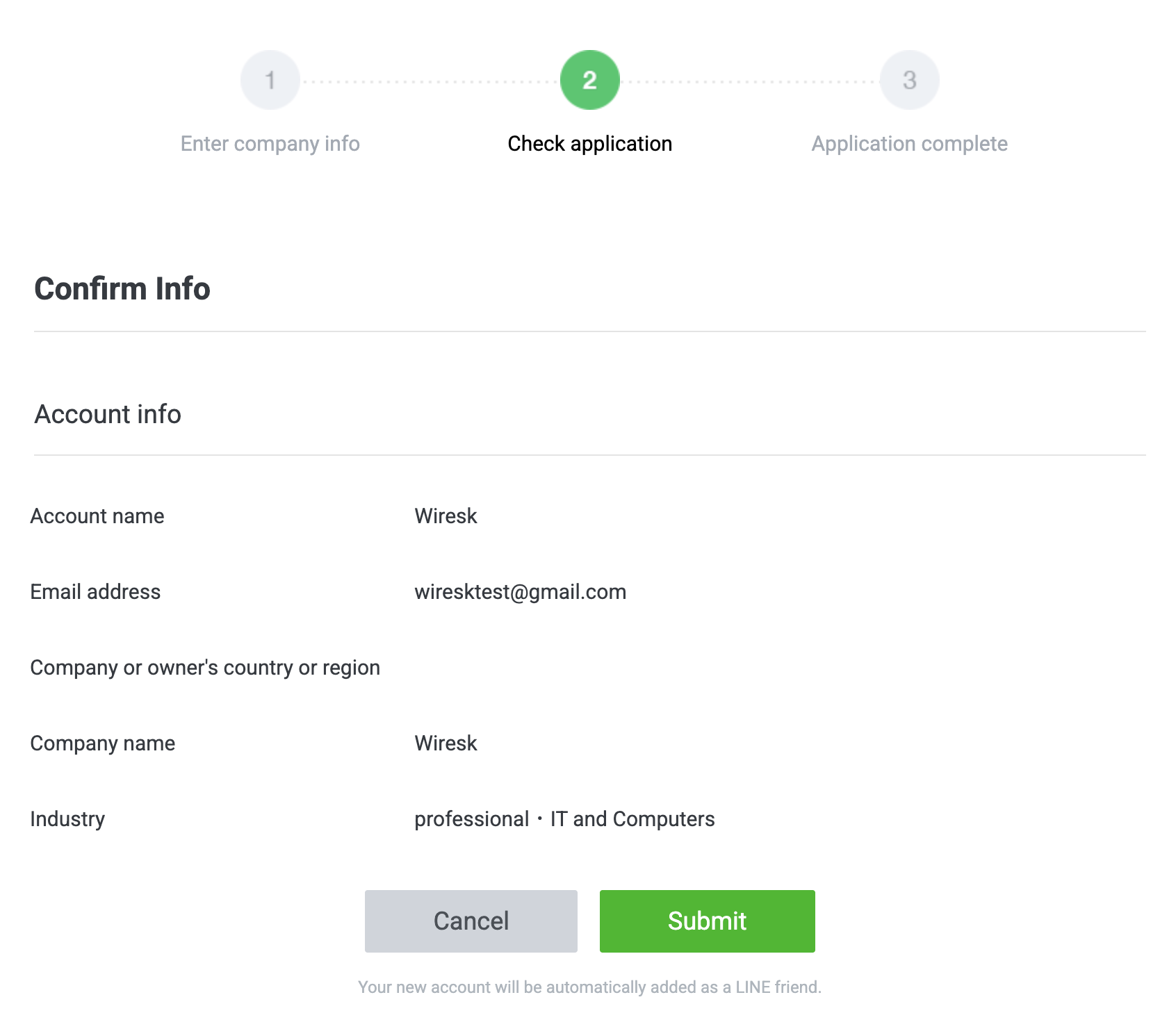

LINE Official Account creation step 2: Check application. The page confirms account info for Wiresk with email wiresektest@gmail.com
, company name Wiresk, and industry IT and Computers. Buttons for Cancel and Submit are displayed at the bottom.

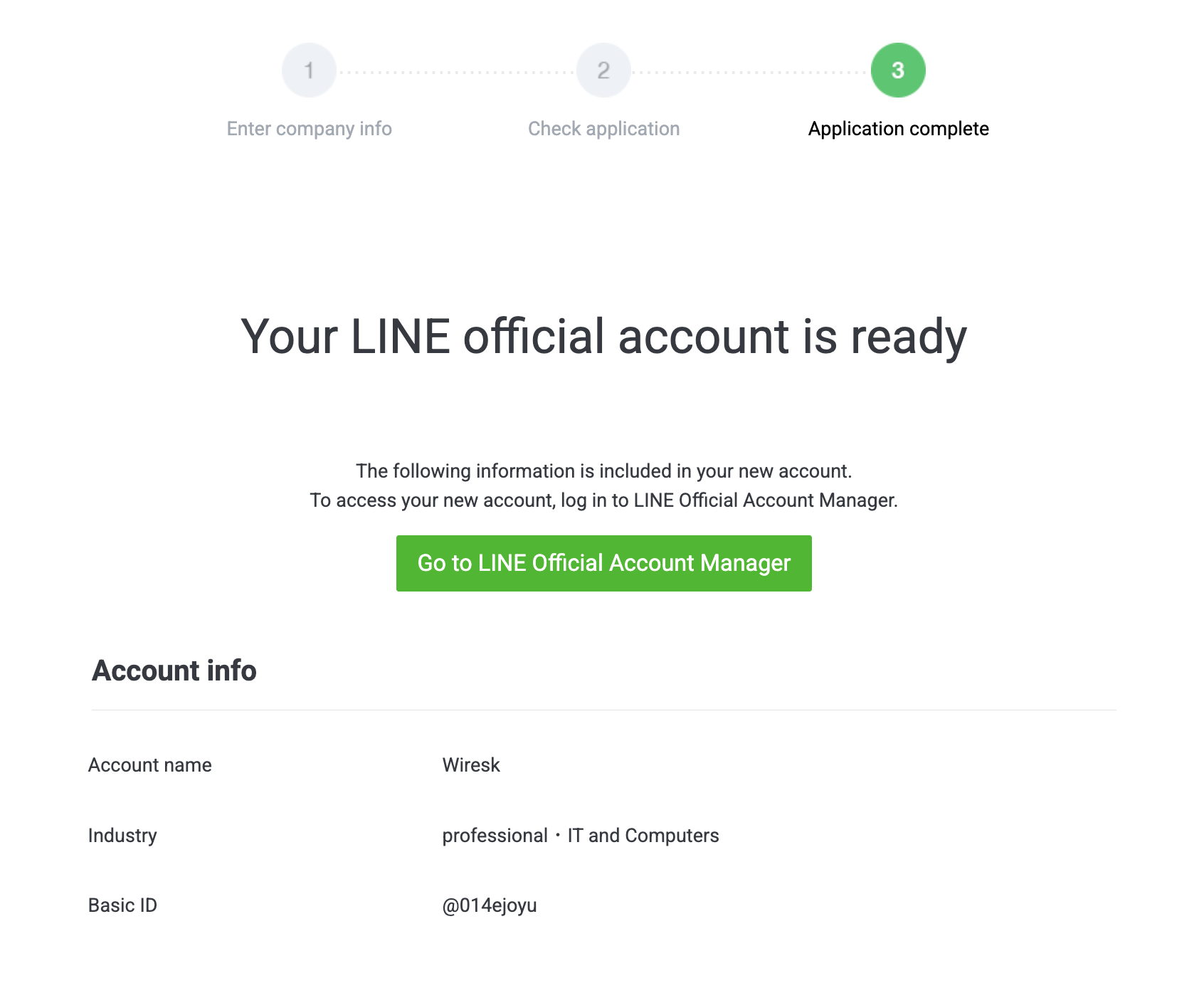

Confirmation screen showing that the LINE Official Account for Wiresk has been successfully created. The page displays a progress bar with steps 1 to 3 completed, a green button linking to LINE Official Account Manager, and account info including account name Wiresk, industry IT and Computers, and Basic ID @014ejoyu.

2. Enable Messaging API for that Account

In the Official Account Manager, open your account.
Go to Settings → Messaging API.
Click Enable Messaging API.
This links your Official Account to the LINE Developers Console automatically.

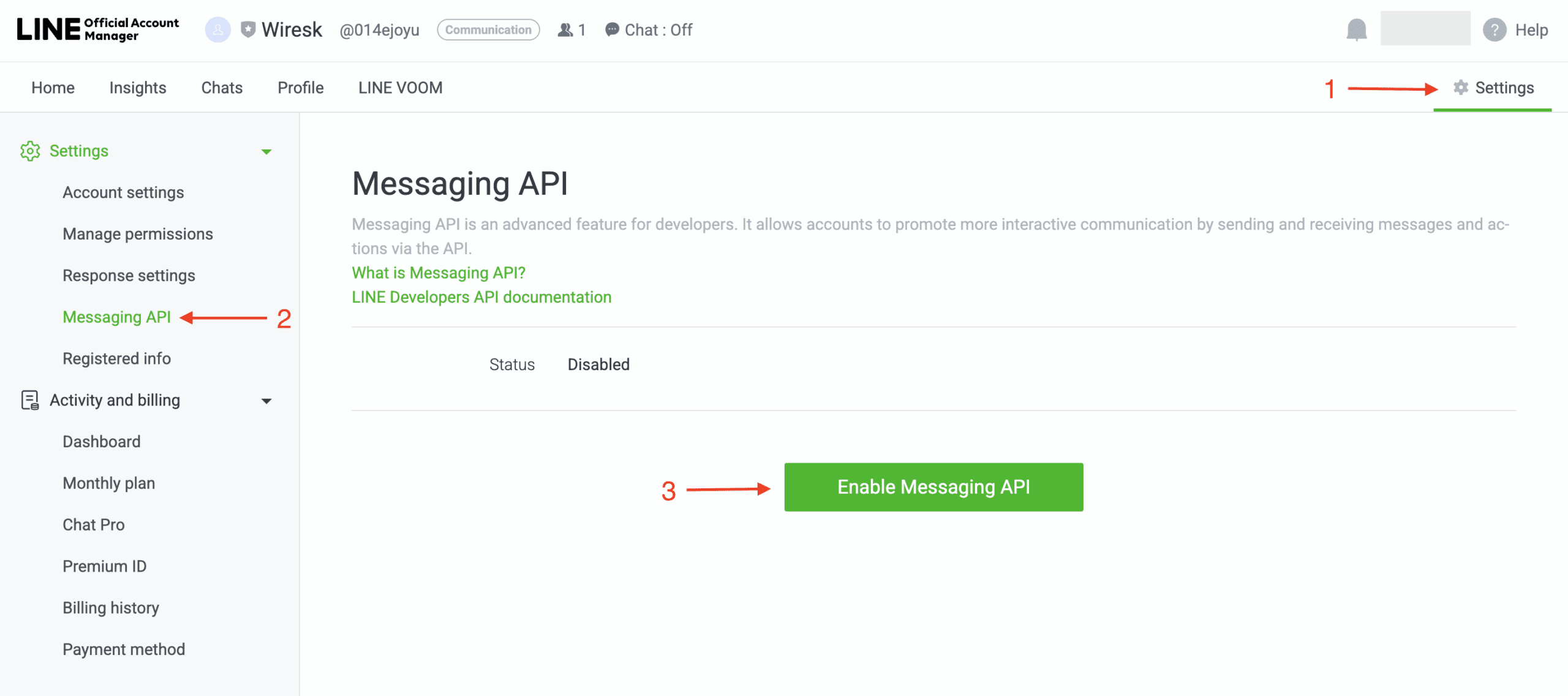

LINE Official Account Manager screen showing Messaging API settings. The left menu highlights Settings > Messaging API. The main panel displays Messaging API status as Disabled, with a green button labeled Enable Messaging API. Red arrows mark step 1 Settings, step 2 Messaging API, and step 3 Enable Messaging API.

3. Go back to LINE Developers Console

Log in at LINE Developers Console.
You’ll now see the Messaging API channel automatically created under your provider.
Click the channel to open its settings.

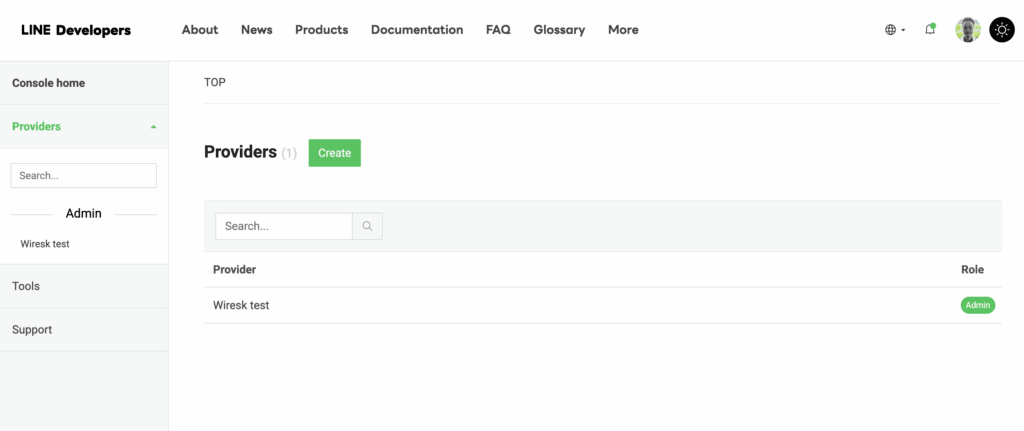

LINE Developers console showing the Providers page. The left menu highlights Providers under Console home. The main panel lists one provider named ‘Wiresk test’ with the role Admin, and a green Create button for adding a new provider.

4. Issue a Channel Access Token

Click on the Messaging API and select the Messaging API tab.
Scroll down and look for Channel access token (long-lived).
Click Issue.
Copy the generated token (it only shows once), then go to Wiresk.

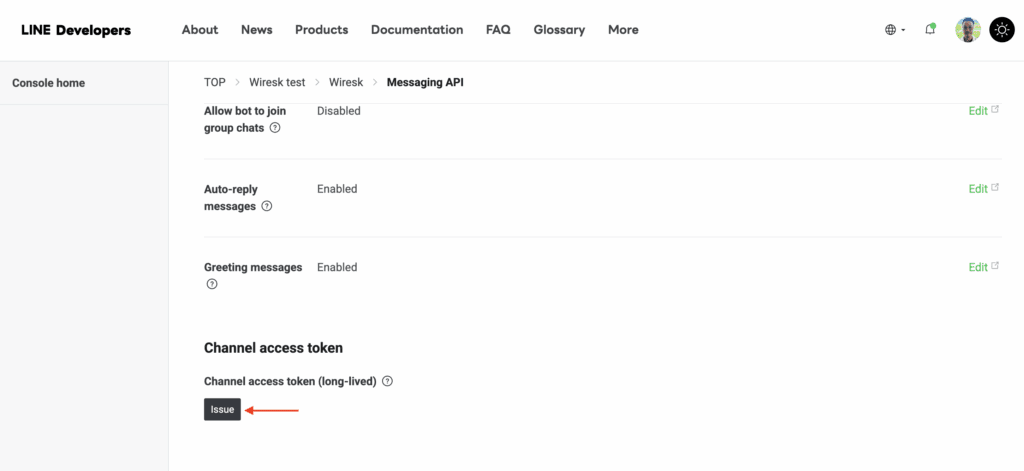

LINE Developers console showing Messaging API settings for the Wiresk provider. Options for joining group chats, auto-reply messages, and greeting messages are listed with their statuses. At the bottom, the Channel access token section is displayed with a button labeled Issue, highlighted by a red arrow.

Create a Line Connection in Wiresk Copy Link

There are two ways to connect your app to Wiresk:

In “My apps” section, where you can manage your connections (select or create your group first to get access to this section, refer to the Group system ).
While building your Flow, you can easily establish a connection to your app directly within the Flow builder. This can be done during the setup of either a Trigger or a Method.

In this guide, we will explain how to create a connection in “My apps” section, it is essentially the same as when creating it on-the-go.

On your Wiresk’s Dashboard, select your Group.
On the left panel, go to “My apps” and select
Search the app name in the search field or select it in the apps list.

Animated image GIF, showing the step of how to create an app connection. First, select the group then select My Apps tab, and click on the "+ create" button.

Name the connection
Provide the Channel Access Token from the previous step.

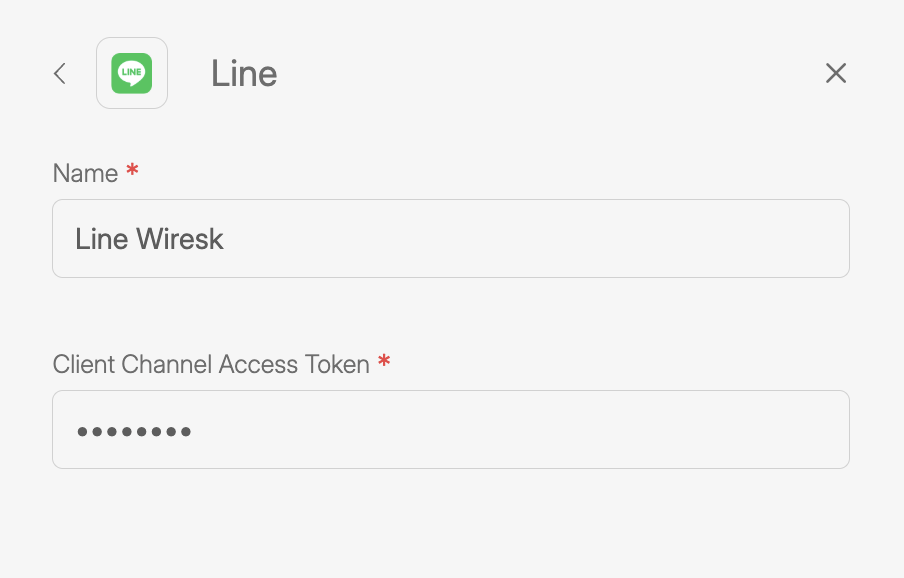

Wiresk connection setup screen for LINE integration. Fields shown are Name, filled with ‘Line Wiresk,’ and Client Channel Access Token, entered as a hidden password field.

Voila! Your connection is ready to be used in your Flows.

Basic understanding of Flow creation Copy Link

Now that your app is linked to Wiresk, you’re ready to start building Flows.

Simple steps to create a Flow ↓

Select your Group, then on the Flow management screen click on “Create Flow”.
On the new screen, name the new Flow.

GIF animated screen of Wiresk, showing the way to create a new Flow.

Add a Trigger that will start your Flow

Flows can be executed by multiple Triggers, depending on the desired workflow. For example, you could use scheduled Triggers with different recurrence rules alongside a Webhook Trigger for immediate, event-driven runs of the Flow. If you choose to “Run Once“, the Flow will execute using only one Trigger and its sample data.

Click on the (+) button to open the Trigger settings side panel.
On the settings side panel, click on the “+ Add” button.

Screenshot of the Wiresk side panel titled “Trigger.” The panel shows a section labeled “All Triggers” with a blue “+ Add” button for inserting a new Trigger.

On the Trigger selection screen, search your app or select it from the list below the screen.

Screenshot of Wiresk Trigger setting screen. Red arrows shows that you can wether search your app in the search or or select it in the list below.

Select your preferred Trigger on the next screen and customize its settings.

As mentioned in “How to connect your app to Wiresk” above, during your Trigger settings, you can create a new connection to your apps at this stage.

Add a Method that will execute a task

The Method will perform a specific task on a particular app or service you’ve connected to Wiresk like get info or send emails.

You can add at least 1 or multiple Methods for complex Flows (a maximum of 255 Methods).

On the Flow builder, select the (+) plus button next the Trigger button.
Search or scroll down to select the app that will perform a task.
Configure the Methods settings, refer to it documentation in our Help Center.

Screenshot of Wiresk Flow Builder with a Flow named “Flow Example.” The canvas shows a Gmail Trigger on the left connected to an empty step placeholder marked with a plus icon in the center. On the right, the panel lists available apps and tools. A search bar is displayed at the top of the panel for filtering apps. Red arrows highlight the empty step placeholder, the search bar, and items in the app list.

Add Wiresk Tools to your Flow

If you want to build a complex Flow, Wiresk offers a selection of tools at your disposal. Refer to Wiresk’s Tools

To add Tools in your Flow, Follow the same step as adding the Methods.

On the Flow builder screen, click on the plus button (+) then just click on the “Tool” tab and select the Tool that you want to add.

Screenshot of Wiresk Flow Builder showing a Gmail Trigger connected to an empty Method placeholder. A red arrow points to the empty step circle with a plus sign where the next action will be added. On the right side, the “Tool” tab is selected in the panel. Another red arrow highlights the “Tool” tab label at the top. A search bar is shown above a list of available tools.

You can refer to “How to Create a Flow” tutorial for more detailed instructions, including step-by-step guidance on mapping and configuration.

Triggers and Methods Settings Copy Link

When you configure a Trigger or Method in Wiresk, the settings panel lets you define how data is collected or sent, and the type of values you enter depends on the field.

Field Type	Description	Example Value
Authentication	Secure access credentials that connect Wiresk to the app.	Wiresk connection, API Key or OAuth Token
Filters or search	Criteria that narrow which records are retrieved.	Search =”QUERY”, Status = “Active” or Type = “Email”
Limits	Maximum number of records to process in one run.	Records number = 100 Page number = 1
Field Mapping	Defines how fields in one step map to another. Can be static or dynamic.	Static: Subject = “Report” Dynamic: Recipient = value from Trigger

Make sure you enter the right values so your Flow works the way you expect and gives the right results. If you need step-by-step details on setting up Line, check the Triggers and Methods Settings documentation.
